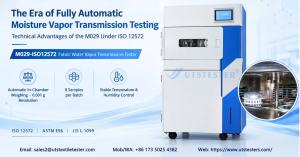

The Era of Fully Automatic Moisture Vapor Transmission Testing: Technical Advantages of the M029 Under ISO 12572

ZHANGZHOU, FUJIAN, CHINA, October 30, 2026 /EINPresswire.com/ -- If you manufacture or source breathable fabrics, membranes, or coated textiles, you already know how critical — and how tedious — water vapor transmission rate (WVTR) testing can be. Traditional methods require technicians to manually open the chamber, remove each transmission cup, weigh it on an external balance, record the data, and repeat this cycle over and over. Every time the chamber door opens, temperature and humidity fluctuate, and your results suffer.

That's exactly the problem the M029-ISO12572 Fabric Water Vapor Transmission Tester from UTSTESTER was built to solve.
Why ISO 12572 and ASTM E96 Compliance Matters to Your Business
The M029 supports the world's most widely referenced moisture permeability standards, including:

ISO 12572 – Hygrothermal performance of building materials and products
ASTM E96 – Standard test methods for water vapor transmission of materials
GB/T 12704 and GB/T 17146-2015 – Chinese national standards for textiles
JIS L 1099 – Japanese standard for moisture permeability of textiles
BS 7209 – British standard for water vapor permeable apparel fabrics
For international buyers, this means one instrument can serve multiple markets and customer requirements — no need to purchase separate machines for different regional standards. Whether your clients in Europe ask for ISO 12572 reports or your North American customers require ASTM E96 data, the M029 delivers results they can trust.

5 Ways the M029-ISO 12572 Makes Your Lab Life Easier
1. No More Door-Opening Errors — Built-in Automatic Weighing
This is the headline feature. The M029 integrates a high-precision imported analytical balance (0.001 g resolution) directly inside the test chamber. The instrument weighs, records, and calculates results automatically — without ever opening the door.

What this means for you:

No operator walking back and forth to the balance every hour
No temperature/humidity disturbance from opening the chamber
No transcription errors from manual recording
Consistent, repeatable, audit-ready data
2. Eight Samples Tested in One Batch
With a single-tier, 8-cup configuration, the M029 records data for a full batch of eight samples simultaneously and automatically calculates and saves every result. If your QC department runs daily permeability checks, your throughput effectively doubles or triples compared with single-sample setups.

3. Precision Environmental Control That Meets Strict Standards
Standards like ASTM E96 and ISO 12572 are unforgiving about environmental conditions. The M029 answers with:

Temperature range: 18–50°C, with ±0.5°C control accuracy and ±0.1°C resolution
Relative humidity: 40–95% RH, controlled within ±2% RH
Internal airflow velocity: 0.1–0.8 m/s for standardized convective conditions
PID control algorithm with high-precision sensors that minimize fluctuation and prevent overshoot
In plain terms: your test environment stays rock-stable, so your WVTR values reflect the fabric — not the machine.

4. A Rotating Sample Rack for More Uniform Results
Fixed sample racks can create uneven airflow exposure, meaning the cup nearest the fan may read differently from the one in the corner. The M029's rotating sample rack (adjustable 1–15 r/min) continuously cycles all cups through the same airflow path, delivering more uniform, comparable results across the batch.

5. Smart, Flexible Test Termination
Different labs, different workflows. The M029-ISO 12572 offers two automatic end-of-test modes:

Fixed cycle mode — run a set number of weighing cycles, then calculate the average result
Mass change rate mode — the instrument monitors the rate of weight change and terminates the test once conditions stabilize
Either way, the machine handles the decision-making and math. Your technician just sets the parameters on the color touchscreen (with bilingual Chinese/English menus), presses start, and walks away.

Who Should Be Using the M029-ISO 12572 ?
Sportswear and outdoor apparel brands validating breathability claims (GORE-TEX-style membranes, waterproof-breathable laminates)
Fabric mills and coating manufacturers running incoming and outgoing QC
Third-party testing laboratories that need multi-standard compliance (ASTM E96, ISO 12572, JIS L 1099, BS 7209)
Medical and hygiene textile producers where moisture management directly affects product performance
R&D departments developing new membrane materials and functional fabrics
The Bottom Line
Every manual weighing step is a chance for error, and every door opening is a threat to data integrity. The UTSTESTER M029-ISO12572 replaces that fragile chain of human steps with a fully automatic, closed-chamber testing loop — so you get accurate WVTR results faster, with less labor and total confidence.
